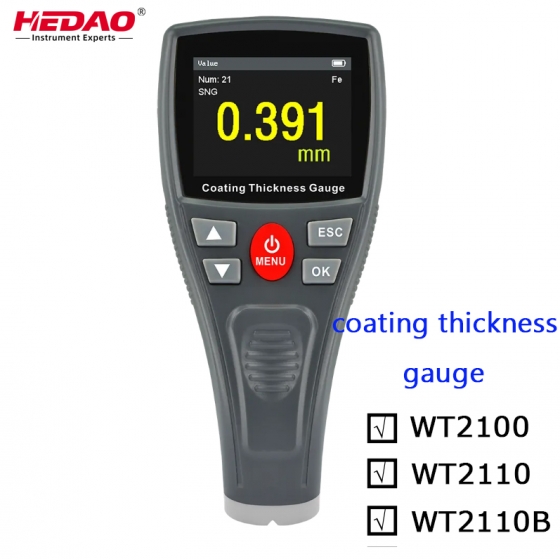

Digital coating thickness gauge

This product is a color-screen portable coating thickness gauge with high-definition display. It can quickly,
non-destructively and accurately measure the thickness of non-magnetic coating (such as paint, electroplate,
thin film, etc.) on magnetic metal substrates. It is widely used in manufacturing, metal processing,
chemical industry, commodity inspection and other testing areas.


Function
	WT2100	WT2110	WT2110B
Menu operation and colo-screen HD display	√	√	√
Fe(magnetic metal)	√	√	√
NFe(non-magnetic metal)	×	√	√
Three calibration modes: basic, offset, zero calibration	√	√	√
Metric/imperial unit and storage function	√	√	√
Screen rotation, charge protection, multi-interface displays,screen brightness selection	√	√	√
Automatic shutdown	√	√	√
Bluetooth function (used with APP)	×	×	√
USB datatransfer(use with PC software)	×	×	√
USB charging function	×	×	√



Specification
		WT2100	WT2110	WT2110B
Measurement range		0~1800um/0~70.9mil/0~1.8mm	0~1500um/0~59mil/O~1.5mm	0~1500pm/0~59mil/0~1.5mm
Resolution		(0.1μm(<100um 1pm(≥100μm))/0.1mil/0.001mm	(0.1pm(<100um 1μm(≥100pm))/0.1mil/0.001mm	(0.1pm(<100μm) 1μm(≥100pm))/0.1mil/0.001mm
Measurement error		≤150pm:±5μm	≤150μm:±5μm	≤150μm:±5pm
		>150μm:±(3%H+1pm)	>150μm:±(3%H+1μm)	>150μm:±(3%H+1μm)
Minimum diameter of magnetic metal substrate		12mm	12mm	12mm
Minimum thickness of magnetic metal substrate		0.5mm	0.5mm	0.5mm
Minimum radius of curvature for magnetic convex substrate		2mm	2mm	2mm
Minimum radius of curvature for magnetic concave substrate		11mm	11mm	11mm
Minimum diameter of non- magnetic metal substrate		×	50mm	50mm
Minimum thickness of non- magnetic metal substrate		×	0.5mm	0.5mm
Battery	3x1.2V NiMH battery(weight 36.5g)or 5V1A power adapter
Size	70.30*38.6*149.59mm
Weight	136.9(including battery)
