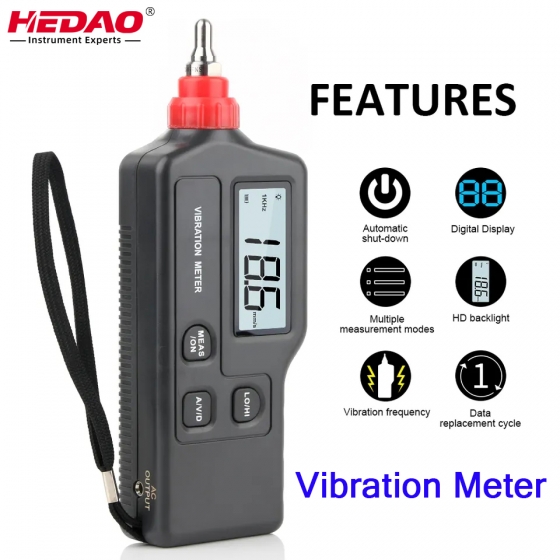

0.1-199.9m/s Vibration Measuring Tester Digital Vibration Meter

0.1-199.9m/s Vibration Measuring Tester Digital Vibration Meter

Product Details:

Place of Origin: Made in china
Brand Name: HEDAO
Model Number: WT63A
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Delivery Time:
Payment Terms:
Supply Ability:

Large Image:Vibration Meter0.1-199.9m/s Vibration Measuring Tester Digital Vibration Meter

Detailed Product Description


 This product is used in machinery manufacturing, power, smelting, vehicles and other fields. In addition,
it is also widely used for rapid inspection of bearings, gears, motors, fan machine tools, etc., and preventive
inspection of mechanical equipment failures.

Function
  WT63A WT63B WT63C
Acceleration, velocity and displacement measurement
Vibration frequency can be selected
Equipped with AC signal output interface × ×
Low battery indicator
Automatic   shutdown
Backlit screen
Screen flipping ×
Curve display ×
Double  measurement  button x
Flashlight x
Screen  brightness ×
Machinery  grade x
Color screen X
Store and view files x

Specification
  WT63A WT63B WT63C
Vibration pickup Piezoelectric ceramic accelerometer (shear-type)
Measurement range Acceleration:0.1~199.9m/s²
Velocity:0.1~199.9mm/s
Displacement:0.001~1.999mm
Acceleration:0.1~199.9m/s² Velocity:0.1~199.9mm/s
Displacement:0.001~1.999mm Frequency:0Hz~4KHz
Measurement accuracy × ±10% ±10%
Measurement frequency range of acceleration 10Hz~1KHz(LO)
1KHz~15KHz(Hl)
20Hz~1KHz(LO)  1KHz~10KHz(HI) 10Hz~1KHz(LO)
1KHz~4KHz(HI)
Measurement frequency range of velocity 10Hz~1KHz(LO) 20Hz~1KHz(LO) 10Hz~1KHz(LO)
Measurement frequency range of displacement 10Hz~1KHz(LO) 20Hz~1KHz(LO) 10Hz~1KHz(LO)
LCD display 31/2 digits display Color display Color display
Displays update cycle 1 second
Maximum groups of
data storage
× 7 groups 500 pieces
(5 groups*100 pieces/group)
Power supply 9V Alkaline battery 1.5V AAA battery*2 1.5V AAA battery*2
Temperature range
for operation
0~40°℃
Humidity range for
operation
30~90%RH
Size 67x30x183mm 180x54x30mm 180x54x30mm
Weight 182g(inclding battery) 250g(with batteries) >150g(with batteries)

Simple to use, the structure is compact, portable for carrying along with measurement.
Visually display measurement value and state.
Acceleration, velocity and displacement measurement.
Different vibration frequency selection.
High sensitivity probe for accurate measurement Provides
long and short probe head ,each one is suitable
for different situation measurement.
Equipped with AC signal output interface.
Low power indication.
Auto power-off.
LCD backlight.
